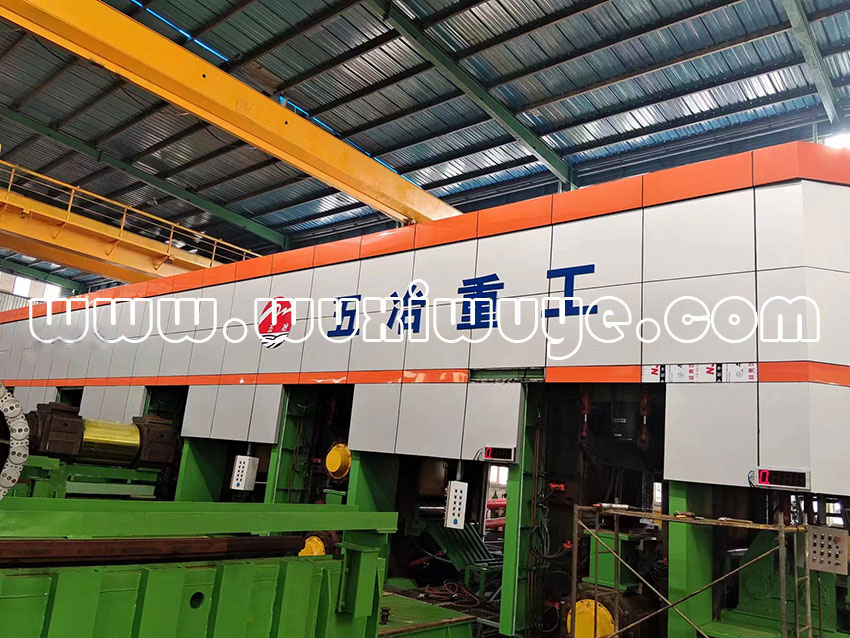

4-hi/6-hi 5-stand pickling tandem mill |
II. Φ280×1150/Φ890×1100㎜(3-stand) Φ280/Φ330/Φ890×1100㎜(2-stand) 4-hi/6-hi 5-stand pickling tandem mill (no-head pickling tandem mill, double coiling) 1.Technical flow: (pickling section) →No. 1 entry device (thickness gauge)of No. 1 housing →F1 main mill→tension and thickness measuring→F2 main mill→tension measuring→F3 main mill→tension measuring→F4 main mill→tension measuring→F5 6-hi mill→exit technical table(with thickness measuring) →pinch device before shearing→power fly shear→No. 1 turning roll(with guiding plate) →No 1 coiler(with belt wrapper) →No. 1 unloading car→Bridge bracket (Magnetic belt conveyor) →No. 2 turning roll(with guiding plate) →No 2 coiler(with belt wrapper) →No. 2 unloading car 2.steel grade: steel grade:Q195、Q215、Q235、08Al、16Mn、HSLA yield strength:σ0.2≤350Mpa raw material: thickness:2.0~4.5mm width:685~1100mm ID: Φ762mm OD:MaxΦ2000mm~Minφ1000 max. coil weight:20t 3.product: a. total deformation: Max 86% H (5 passes rolling) b. product thickness: 0.35~4.0mm c. product width: 685~1100mm d. ID: φ508mm e. OD: Maxφ2000mm~Minφ1000 f. max coil weight: 20t 4.main technical parameters: a)type of machine F1~F3:Φ280×1150/Φ890×1100mm 4-hi cold rolling mill F4~F5:Φ280×1150/Φ330×1150/Φ890×1100mm 6-hi cold rolling mill b) technical parameters ?driving type: by working rollers ?pressure down: by hydraulic ?max rolling force:11000KN ?max rolling speed:600m/min (No. 5 housing exit side) ?threading speed:0.3~0.5m/s ?pickling exit side speed:Max 150m/min ?coiling speed:Max 600m/min ?coiling tension:Max 85KN c)motor power ?main motor Z900-400,2240KW,470/900rpm,750V,5pcs ?pinch device motor: Z4-250-31,132kw,1000/2000rpm,440V,1pcs ?flying shear motor: ZFQZ-250-11,110kw,980rpm,440V,1pc ?coiler motor: Z710-4B,1150kW,400/1200rpm,750V,2pcs ?total DC power about: KW ?total AC power about: KW |
