Aluminum strip Rolling Machine

Description of machine

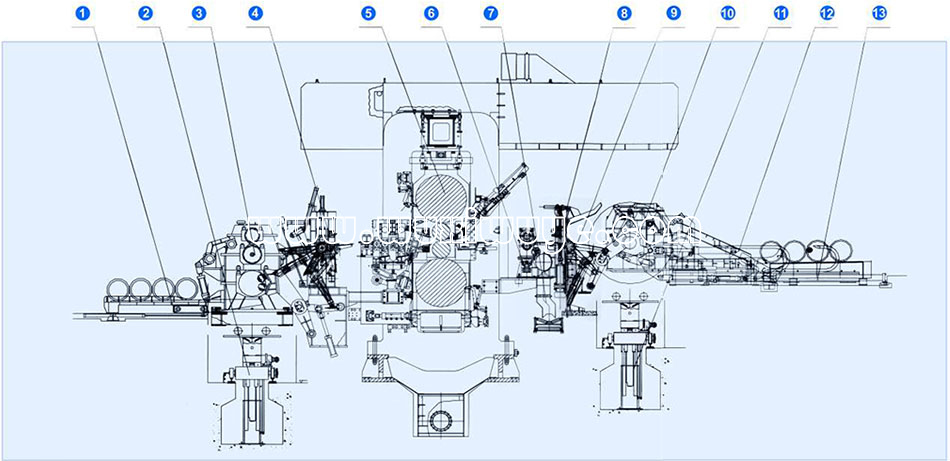

1. Sleeve lead-out device 2. entry coil-transporting device 3. uncoiler 4. pinch roller 5. main mill 6. edge cutter 7. scrap transporting device 8. hydraulic shear 9. guiding device 10. coiler 11. exit coil transporting device 12. belt wrapper 13. sleeve guide-in device

Specifications description

Material: pure and alloy aluminum
Input thickness: max 10mm
Dia. Of work roll: f280-600
Width of material: 600-2300mm
Surface width of work roll: 800-2500mm
ID of coil: Maxf2500mm
Dia of back up roll: f600-1500
Coil weight: max 30000kg
Surface width of back up roll: 750-2450mm
Rolling method: non reversible
Product thickness of coarse rolling: 0.1-4.0mm
Product thickness of fine rolling: 0.05-0.6mm
Rolling speed: max 1500m/min
Width of strip: 950-2250mm




Brief introduction of the machine

The machine is to roll aluminum coil from continuous casting and rolling mill or hot tandem mill to various thickness,, the products can be the material for aluminum strip, coil, pop can and aluminum foil. According to the thickness, it can be divided to cold coarse mill, cold fine mill; according to the housing, it can be divided to 4-hi mill, 6-hi mill, universal cold mill, cold tandem mill.

Features and applications

It is applicable to roll pure and alloy aluminum.Hot rolling mill,cold rolling mill and casting mills are availabe.

Technical parameters

NAME SPECIFICATION PRODUCT
Two-roll casting&rolling machine All kinds 8-10×600-1400
Two-roll hot rolling machine φ350-φ800×500-1450 2.5-5×600-1400
Four-high cold rolling mill φ180/φ500×500-800 0.20×400-700
Four-high cold rolling mill φ260-φ580×900-1200 0.25×800-1100
Four-high cold rolling mill φ200/φ580×900-1200 0.15×800-1100
